HUSQVARNA Z560X

14690,00 €

The Husqvarna Z500 series Zero Turn mower represents the latest design focused on productivity, durability and cut quality. Providing extreme comfort, high ground speeds and superior traction which adds up to exceptional mowing efficiency. Industrial strength throughout the entire design assures a long and durable service life in commercial mowing applications. Careful design consideration provides unprecedented ease in serviceability.

  • Motor/engine manufacturer:Vanguard
  • Cutting width:60 in
  • Cutting width:152 cm
  • Cutting methods:Collect/Mulch/Side discharge

Out of stock

Z560X
  •
  •
  •

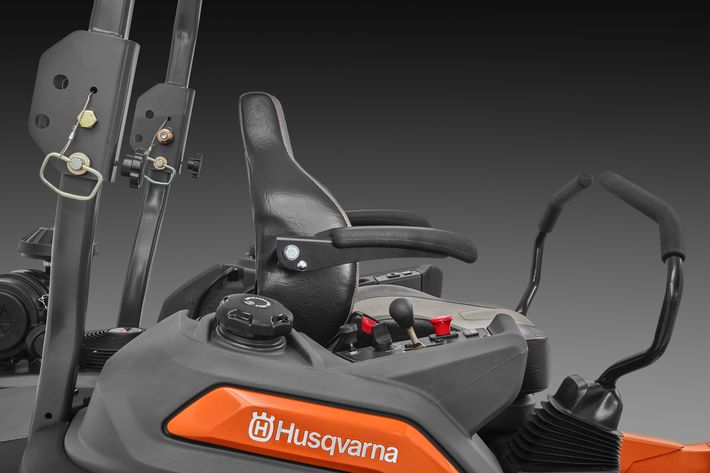

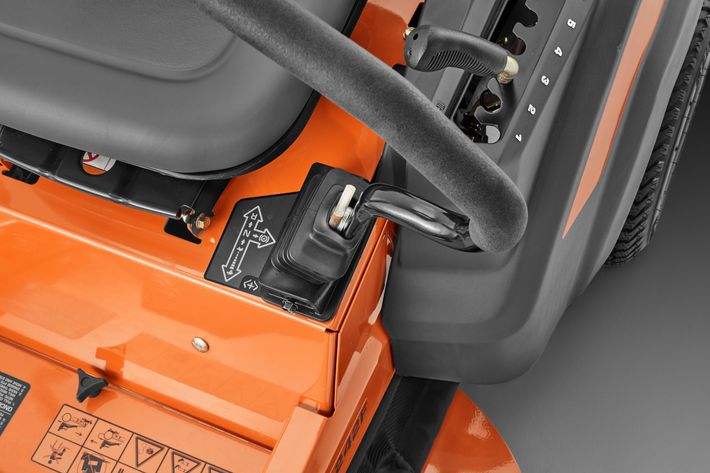

Integrated parking system

Automatic parking brake is integrated in the control levers. The parking break is activated as you pull the levers apart.

Adjustable sliding seat

Unique seat platform automatically changes height as seat is moved forward or rearward to optimize operator position.

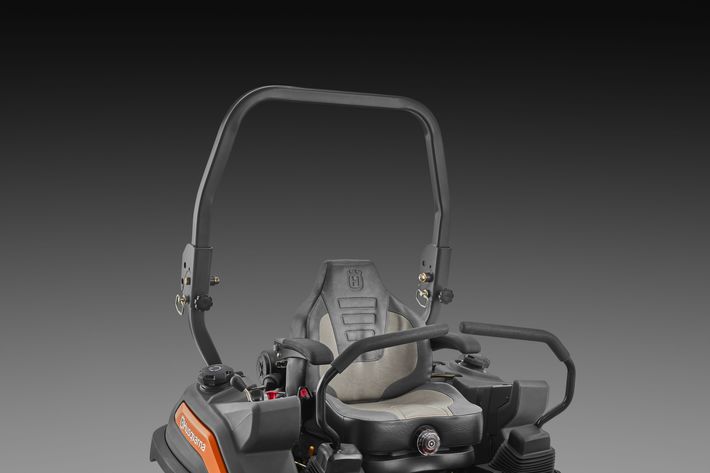

Roll Over Protection System (ROPS)

The easily foldable ROPS protects the user and can be lowered in areas without the proper clearance.

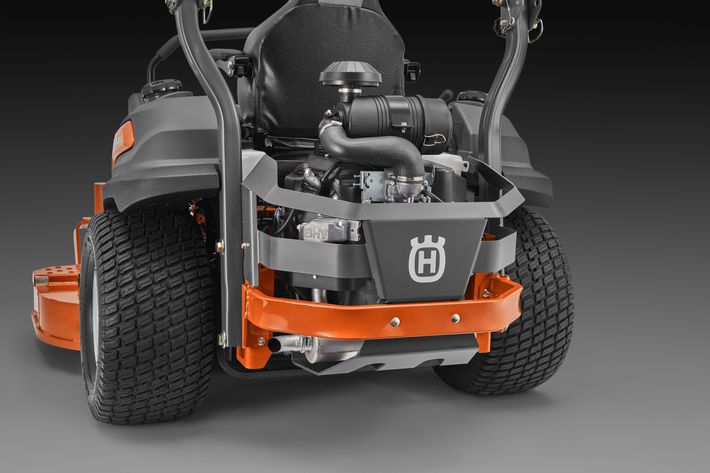

Rear engine guard

The rear guard protects the engine from impact as well as limits access to hot surfaces for safety.

Approval

  • Commercial Warranty 3 Years

Capacity

  • Productivity 5.8 acres/hr
  • Productivity 23471.8 m²/h
  • Speed forward max 12 mph
  • Speed forward max 19.3 km/h
  • Speed forward min 0 mph
  • Speed forward min 0 km/h

Cutting deck

  • Cutting width 60 in
  • Cutting width 152 cm
  • Cutting deck type 7-gauge fabricated
  • Cutting methods Collect/Mulch/Side discharge
  • Cutting deck material Steel
  • Deck thickness 7 gauge
  • Deck thickness 4.76 mm
  • Cutting height steps 16
  • Blade engagement Electromagnetic clutch
  • Clutch rating 250 ft.lb
  • Clutch rating 338.95 Nm
  • Blades 3 pcs
  • Blade-tip speed 18500 fpm
  • Blade-tip speed 93.98 m/s
  • Anti-scalp wheels 4
  • Nose roller Yes
  • Deck lifting system Manual, foot assisted
  • Powder-coated cutting deck Yes
  • Spindle/mandrel type Cast iron
  • Greasable mandrels Yes
  • Deck Wash Port No
  • Cutting height max 5 in
  • Cutting height max 127 mm
  • Cutting height min 1 in
  • Cutting height min 25 mm

Dimensions

  • Base machine, length 81 in
  • Base machine, length 206 cm
  • Base machine, height 46 in
  • Base machine, height 117 cm
  • Weight 1390 lbs
  • Weight 630 kg
  • Base machine, height (ROPS down) 46 in
  • Base machine, height (ROPS down) 117 cm
  • Base machine, height (ROPS up) 73 in
  • Base machine, height (ROPS up) 185 cm
  • Tyre size, front Width 6 in
  • Tyre size, front Diameter 13 in
  • Wheel/rim size, front Diameter 6.5 in

Drive system

  • Transmission type Hydrostatic
  • Transmission manufacturer Hydro-Gear
  • Transmission model ZT 5400
  • Pump displacement 16 cm³
  • Fan-cooled pumps Yes

Engine

  • Motor/engine manufacturer Vanguard
  • Engine name Vanguard V-Twin
  • #Power 25.5 hp
  • Cylinder displacement 49.4 cu.inch
  • Cylinder displacement 810 cm³
  • Cylinders 2
  • Engine cooling Air
  • Air filter type Cyclone
  • Power/fuel type Gasoline
  • Engine lubrication type Pressure with Oilfilter
  • Fuel tank volume (with reserve) 12 gal (US)
  • Fuel tank volume (with reserve) 45.4 l
  • Fuel tank location Side (Dual)

Equipment

  • Seat material Vinyl
  • Seat spring Yes
  • Seat back height High
  • Hour meter type Yes
  • Cup holder Yes
  • Armrests Yes
  • ROPS Yes
  • Seat type Professional, suspension
