HUSQVARNA R 422Ts AWD
10899,00 € Incl. vat.

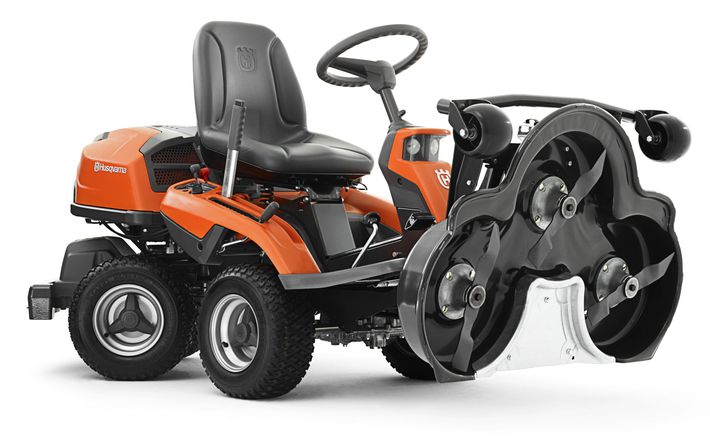

High performance All-Wheel-Drive Rider, built on an operator-friendly chassis. Equipped with convenient features like power steering, hydraulic tool lift, headlights and quick tool connection for hassle-free and efficient tool changes. Can be fitted with a flail mower, broom, snow thrower, snow blade and more. An excellent choice for private estate owners, sports facilities and hotels with large areas to maintain year-round. The Rider 422Ts AWD is delivered deckless and can be fitted with 112 and 122 cm Combi cutting decks offering BioClip and rear ejection.
- Motor/engine manufacturer:Briggs & Stratton
- Net power at preset rpm:3000 rpm
- Cutting methods:BioClip®/Rear discharge
- Cutting width, min-max:103-122 cm
Out of stock

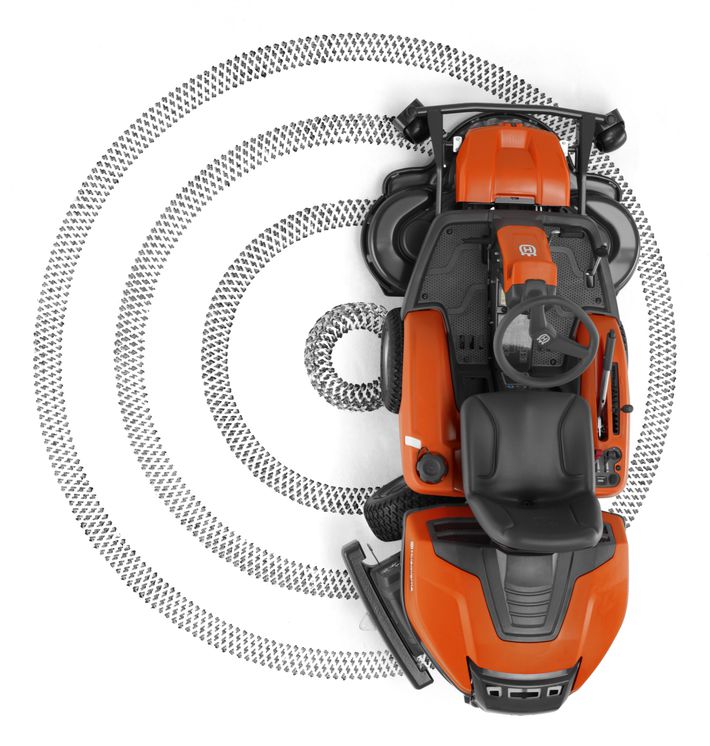

Unique articulated steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

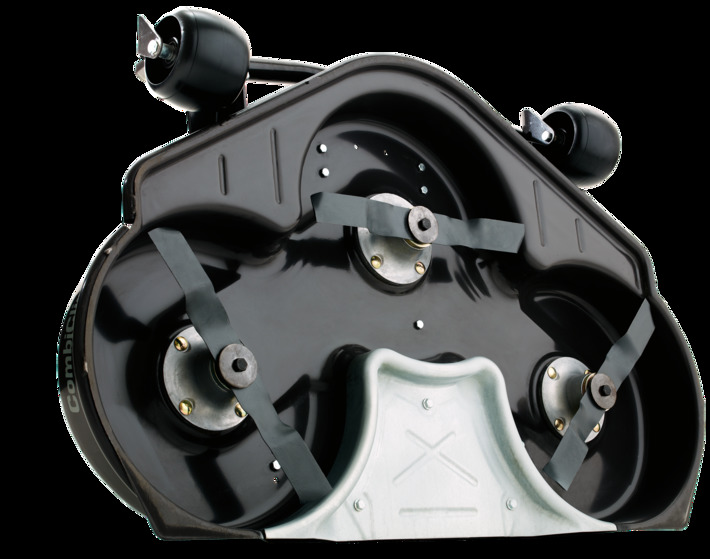

Three-blade cutting deck
The three-blade cutting deck offers first-class trimming on both left and right side and gives the same uncut circle diameter regardless of direction.

Service position
Service position on the cutting deck facilitates cleaning and service.

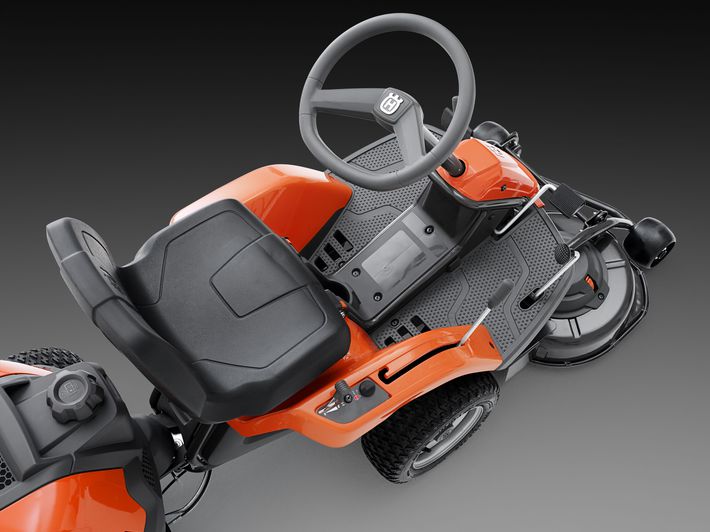

Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable "sit-in" feeling for the user.
Engine
- Motor/engine manufacturer Briggs & Stratton
- Engine name Endurance Series V-Twin
- Net power at preset rpm Energy 12.6 kW
- Net power at preset rpm 3000 rpm
- Cylinder displacement 656 cm³
- Cylinders 2
- Engine cooling Air
- Generator 16 A
- Battery 12 V
- Battery 24 Ah
- Power/fuel type Gasoline
- #Fuel tank volume 17 l
- Fuel tank volume (with reserve) 17 l
- Engine lubrication type Full pressure
- Oil filter Yes
Battery
- Battery type Lead/Acid
- Battery capacity 24 Ah
- Battery pack weight 15.87 lbs
Cutting deck
- Uncut circle 60 cm
- Cutting width, min 103 cm
- Cutting width, max 122 cm
- Optional cutting decks Combi 112, Combi 122, Combi 103
- Cutting deck type Combi
- Cutting deck material Steel
- Cutting methods BioClip®/Rear discharge
- Cutting height max 75 mm
- Cutting height min 25 mm
- #Cutting height steps 7
- Blade engagement Automatic
- Blades 3 pcs
- Powder-coated cutting deck Yes
Dimensions
- Tyre dimensions, front 200/65-8
- Tyre dimensions, rear 200/65-8
- Wheelbase 100 cm
- Ground clearance 90 mm
- Base machine, length 207 cm
- Base machine, width 90 cm
- Base machine, height 116 cm
- Weight 313 kg
Drive system
- Transmission type Hydrostatic AWD
- Transmission manufacturer, rear Kanzaki
- Transmission manufacturer Kanzaki
- Drive method Pedal-operated
- Speed forward max 11 km/h
- Speed forward min 0 km/h
- Speed reverse max 7 km/h
- Speed reverse min 0 km/h
- Transmission manufacturer, front Kanzaki
- Transmission model, front KTM10D
- Transmission model, rear K664
Equipment
- Oil cooler Yes
- Hour meter type Digital with pre-programmed service intervals
- Seat material Vinyl
- Seat suspension Yes
- Seat back height High
- Foldable seat Yes
- Steering wheel type Comfort
- Parking brake, type Disc
Sound and Noise
- Sound pressure level at operators ear 88 dB(A)
- Sound power level, measured 102 dB(A)
- Sound power level, guaranteed (LWA) 103 dB(A)
Vibration
- Vibration level steering wheel 3.5 m/s²
- Vibration level seat 0.7 m/s²
