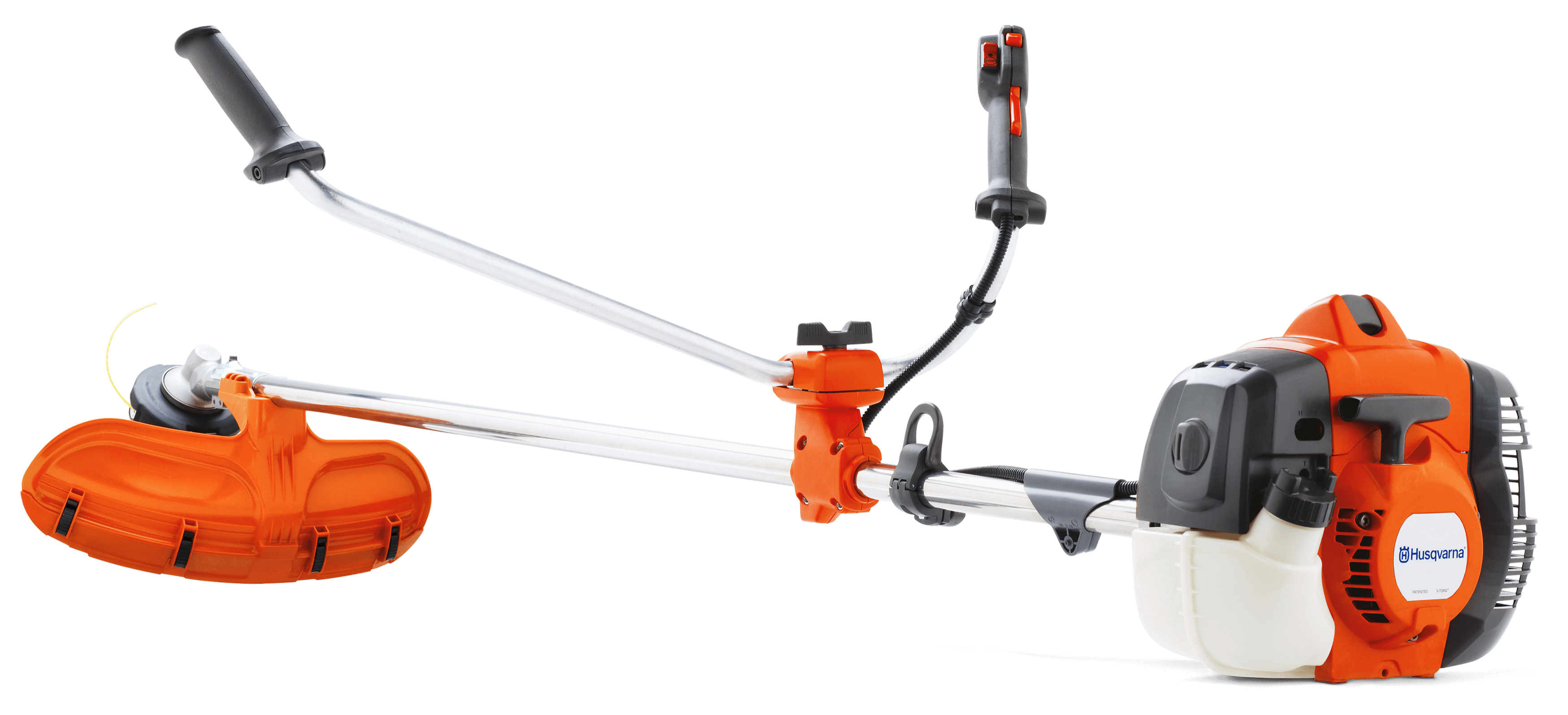

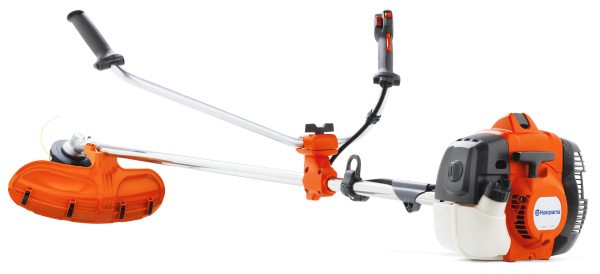

HUSQVARNA 135R

549,00 €

Versatile brushcutter, perfect for homeowners. Easy starting with Auto-return stop switch and fuel pump. The X-Torq® engine provide raw power and excellent fuel economy. Comes with double harness, easy loading semi automatic trimmer head and grass knife.

  • Cylinder displacement:34.6 cm³
  • Weight (excl. cutting equipment):6.8 kg
  • OEM Harness:Standard double harness
  • Equivalent vibration level (ahv, eq) left handle:2.9 m/s²

Out of stock

HUSQVARNA 135R

Standard double harness

Standard harness for lighter brushcutters.

Adjustable handle bar

Adjustable and ergonomically designed handlebar for best comfort.

X-Torq® engine

The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.

Tap 'n Go

Heavy duty twin line cutting system with Tap 'n Go for quick line feed.

Engine

  • Power output 1.4 kW
  • Cylinder displacement 34.6 cm³
  • Maximum rpm output shaft 8220 rpm
  • Maximum power speed 8400 rpm
  • Idling speed 2900 rpm
  • Clutch engagement speed (±120) 3800 rpm
  • Torque, max. 1.8 Nm
  • Torque, max. at rpm 6600 rpm
  • Fuel tank volume 0.6 l
  • Fuel consumption 435 g/kWh
  • Spark plug Champion RCJ6Y
  • Electrode gap 0.5 mm
  • Exhaust emissions (CO2 EU V) 862 g/kWh [1]

Transmission

  • Gear ratio 1.4
  • Drive gear angle 35 °

Dimensions

  • Weight (excl. cutting equipment) 6.8 kg
  • Tube length 1483 mm
  • Tube diameter 28 mm

Equipment

  • OEM Grass blade Multi 300-3
  • OEM Harness Standard double harness
  • OEM Trimmer head T35 M12

Lubricant

  • Lubricant type Husqvarna 2 stroke or equiv. at 50:1
  • Lubricant type (bevel gear) Mineral grease

Sound and Noise

  • Sound power level, guaranteed (LWA) 113 dB(A)
  • Sound power level, measured 112 dB(A)
  • Sound pressure level at operators ear 98 dB(A)

Emission

  • Exhaust emissions (HC average) 40.51 g/kWh
  • Exhaust emissions (HC average) 29.31 g/kWh
  • Exhaust emissions (HC average) 29.31 g/kWh
  • Exhaust emissions (CO average) 418.31 g/kWh
  • Exhaust emissions (CO average) 243.69 g/kWh
  • Exhaust emissions (CO average) 243.69 g/kWh
  • Exhaust emissions (NOx average) 0.46 g/kWh
  • Exhaust emissions (NOx average) 1.09 g/kWh
